Capabilities

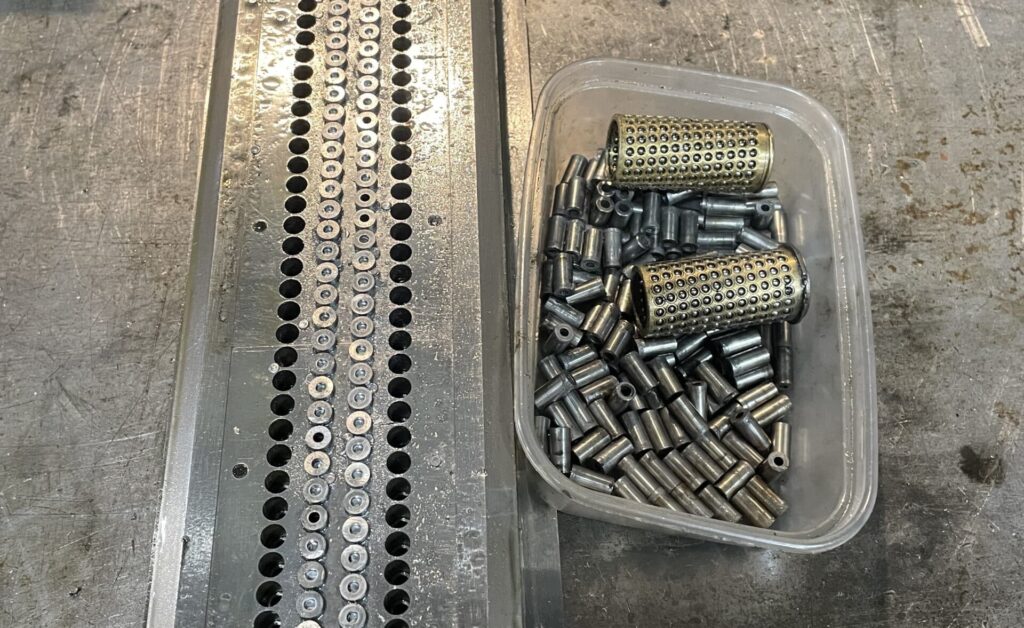

Working on developing a new prototype at pickering perforated products
Operational capabilities
We’ve been leading the way in perforating technology and producing exceptional perforated products since 1945 so rest assured… we know what we’re doing.
We invest in the latest technologies and techniques to increase productivity and minimise our impact on the environment.
Our supply network, built up for almost a century, is tried, tested and true. And we’re committed to swift lead times; products are manufactured efficiently and on time without compromise on quality.
Perforating
/
Welding
/
forming
/
cutting
/
rolling

Prototyping

Unlock the potential of your projects with our expert engineering skills and custom, bespoke solutions. Whatever your need for tailored metal coil, sheet, tubes and discs, our precision manufacturing ensures top-quality, durable parts that meet your exact specifications.

Skilled and knowledgeable engineers

We’re forward-thinking innovators, dedicated to quality and process improvements. We focus on solutions and work as a team pooling our collective knowledge and experience to drive innovation and improve our processes.
With our specialist expertise and knowledge, we can support you from early concept and prototype stages, right through to completion.
Forward-thinking innovators
Dedicated to quality and process improvements.
Solutions-oriented, team players
Pooling our collective knowledge and experience, we drive innovation and continuously improve our processes.
Specialist expertise and knowledge
Supporting you from early concept and prototyping through to completion.

Materials

We stock a wide range of materials in a variety of sizes for your convenience and peace of mind, helping you to complete on time and in budget. Our wide-ranging stock and extensive product design knowledge allow us to offer a low-cost or no-cost tooling solution for new products. We don’t charge for holding free issue products for ‘just in time’ projects.
Everything we manufacture comes from either a coil or a strip.
We perforate in a wide range of sizes, holes, shapes and layout patterns to meet ISO/EN specifications from either coil, blank or sheet form.
  • Perforated Stainless steels
  • Perforated Zintec
  • Perforated Aluminium
  • Perforated Galvanised steel
  • Perforated Tin plate steel
  • Perforated Mild steel

How our perforated metal products are made:

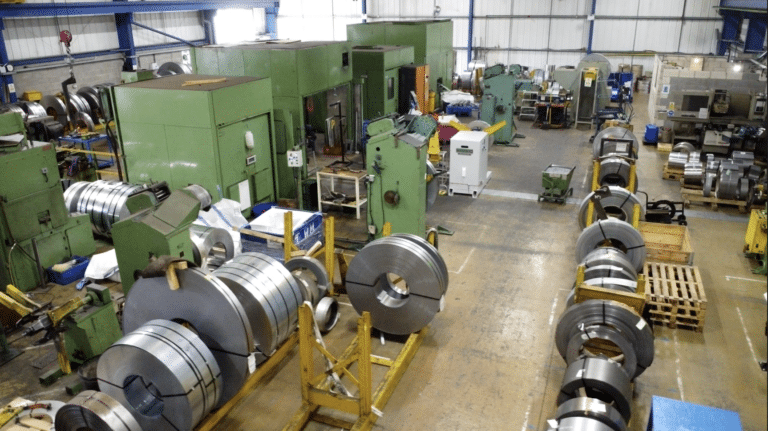

Strip, sheets and coil

Everything we manufacture comes from either a coil strip or a sheet blank.

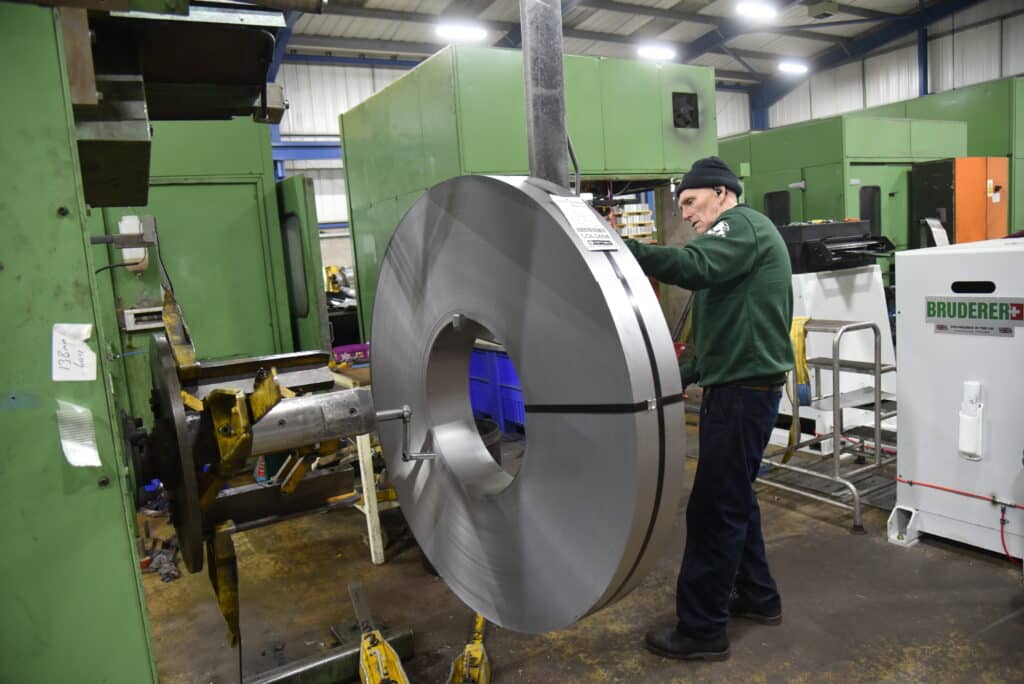

Plain Metal Coil Strip
Plain metal ships before perforating isolated on white background

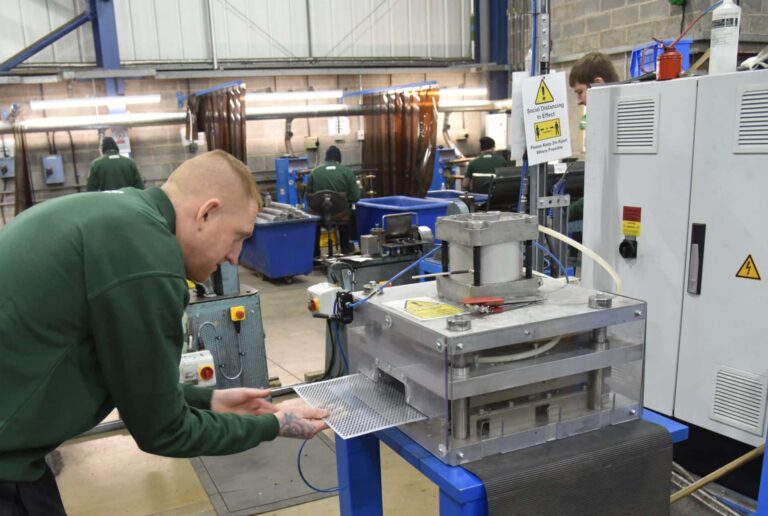

Perforating

High speed perforating press

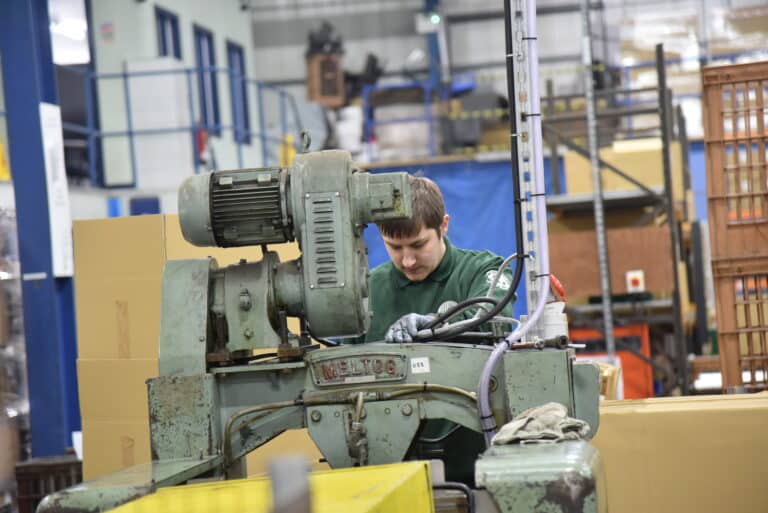

Notching machine

Our custom built manual notching machine enables us to notch sheet blanks to the required specification.

Talk to us for bespoke notching capabilities.

Automated spiral lock seam machine

Materials
Stainless Steel, Zintec, Tin Plate and others
Thickness
0.20mm to 0.50mm
Length
50mm to 1,500mm
Width
Narrow 47.20mm Medium 68.00mm Wide 88.80mm
Diameter
Range of fixed sizes starting from 38.10mm to 121.10mm
Patterns and Tooling
Range of perforated, louvered, fluted and bespoke options available

Welding

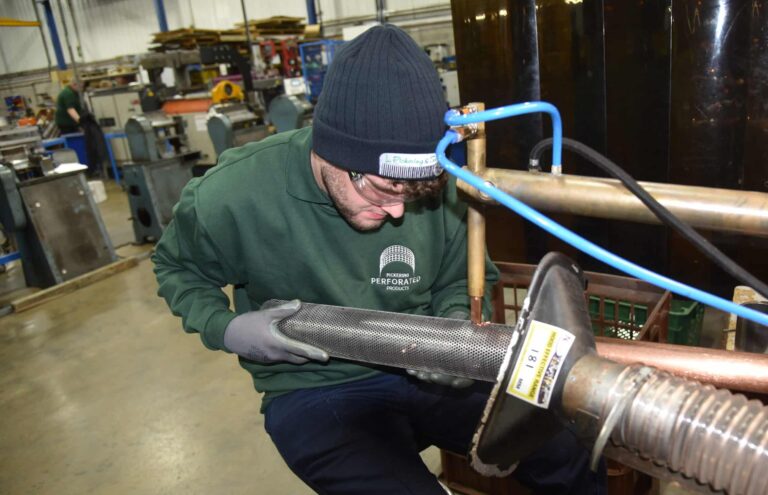

Resistance welder

Our experienced team can zip weld, spot weld and wedge weld to a wide range of tube sizes.
Materials
Stainless Steel, Zintec, Galvanised Steel and others
Thickness
0.20mm – 3.00mm
Length
10mm to 1,500mm
Width
n/a
Diameter
10mm to 900mm
Patterns and Tooling
n/a

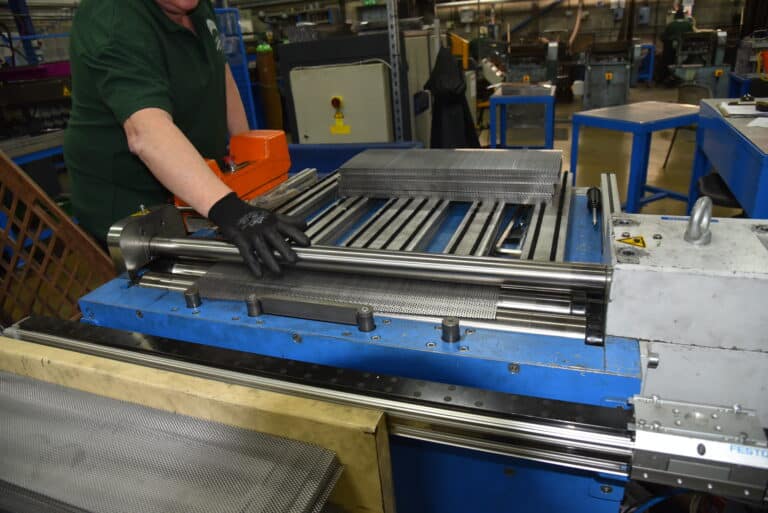

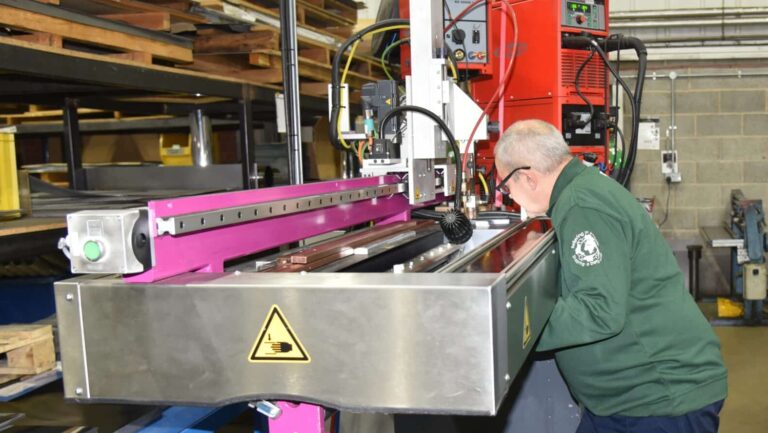

Longitudinal seam welder

Our automated longitudinal seam welder enables us to produce airtight and watertight butt joint welded seams for plain and part perforated tubes in a range of materials and sizes.
Materials
Stainless Steels, Zintec, Steel, Aluminium and others
Thickness
0.4mm to 3mm
Length
10mm to 1,100mm
Width
n/a
Diameter
55mm to 1,000mm
Patterns and Tooling
n/a

Forming

Body Maker

Levelling machine at Pickering Perforated Products factory in Warwick

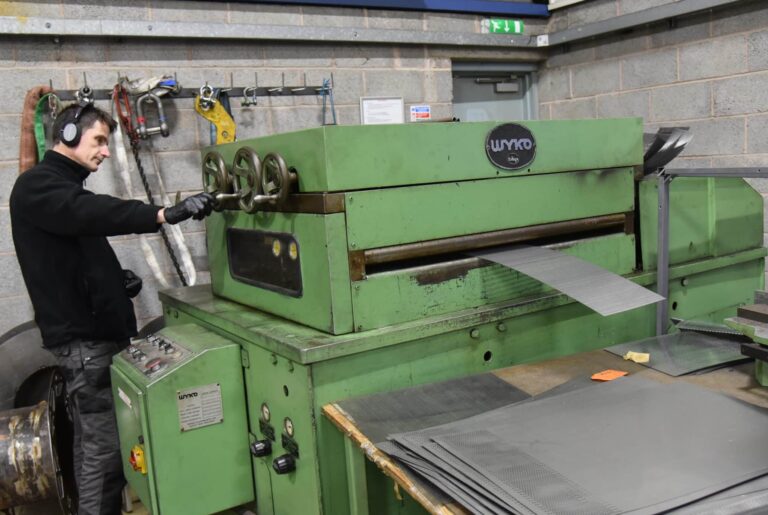

Levelling machine

Our manual levelling machine enable is to precision flatten cut sheet blanks.
Materials
All
Thickness
??
Length
??
Width
??
Diameter
n/a
Patterns and Tooling
n/a

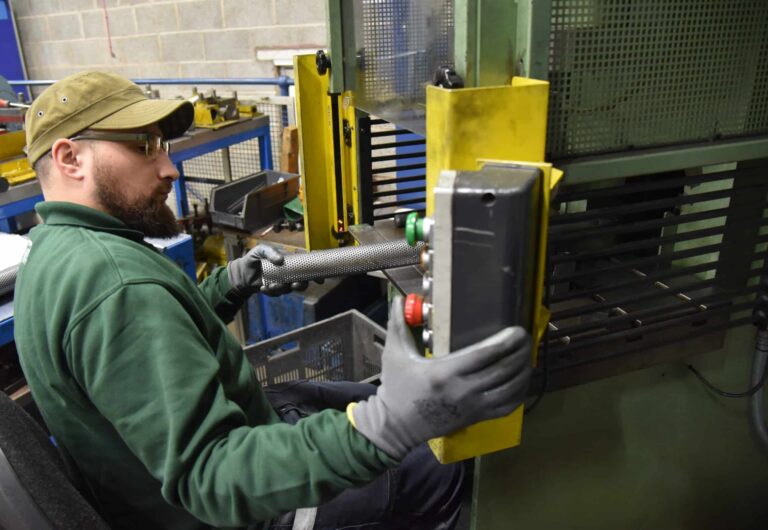

Flanging and beading

Hydraulic and manual presses

Cutting

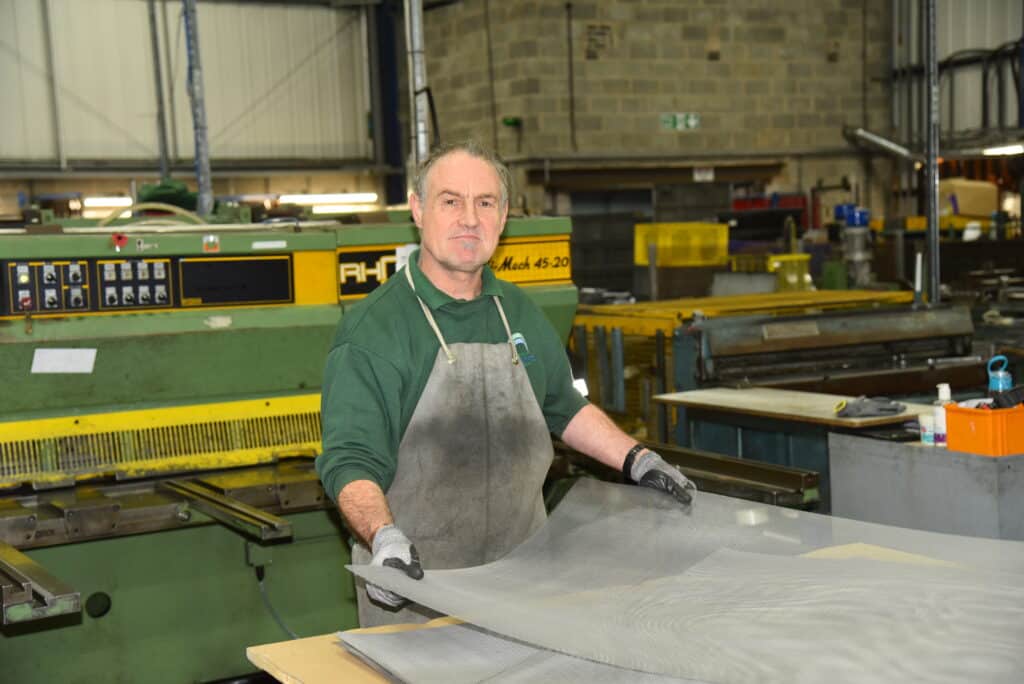

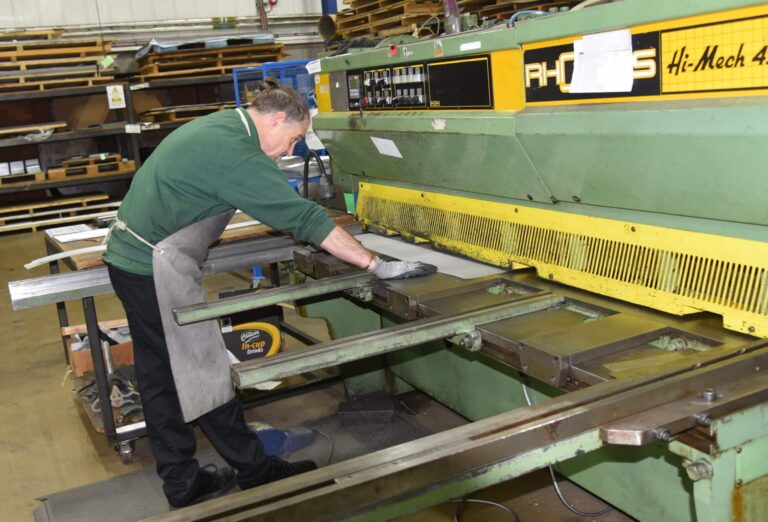

Guillotine

Our wide capacity manual guillotine enables us to cut perforated, part perforated, plain, mesh and expanded sheets to the required length sheet blank.
Materials
Stainless Steels, Zintec, Steel, Aluminium and others
Thickness
0.3mm to 2mm
Length
10mm to 1,500mm
Width
10mm to 2,000mm
Diameter
n/a
Patterns and Tooling
n/a

Cut to length machine

With our automated cut to length machine we can cut perforated, part perforated and plain coil to the required sheet length.
Materials
Stainless Steel, Zintec, Steel, Aluminium and others
Thickness
0.3mm to 2mm
Length
5mm to 2,999mm
Width
10mm to 600mm
Diameter
n/a
Patterns and Tooling
n/a

Rolling

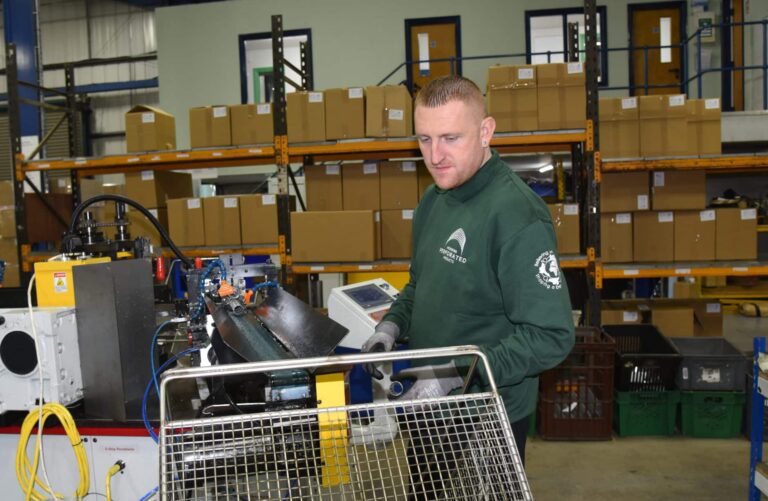

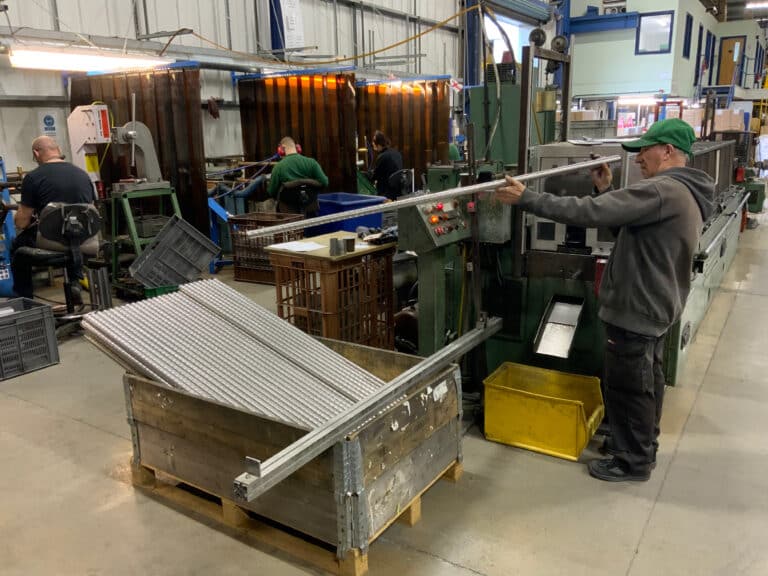

Roll forming machine

Our roll forming machine enables us to produce lock seam tubes directly from perforated coil. The automated process has the capability to corrugate and notch if required and then cut to the required length in one process.
Materials
Stainless Steel, Zintec, Steel, Tin Plate and others
Thickness
0.30mm
Length
100mm to 1,500mm
Width
100mm
Diameter
29mm OD
Patterns and Tooling
Corrugated and notched options available

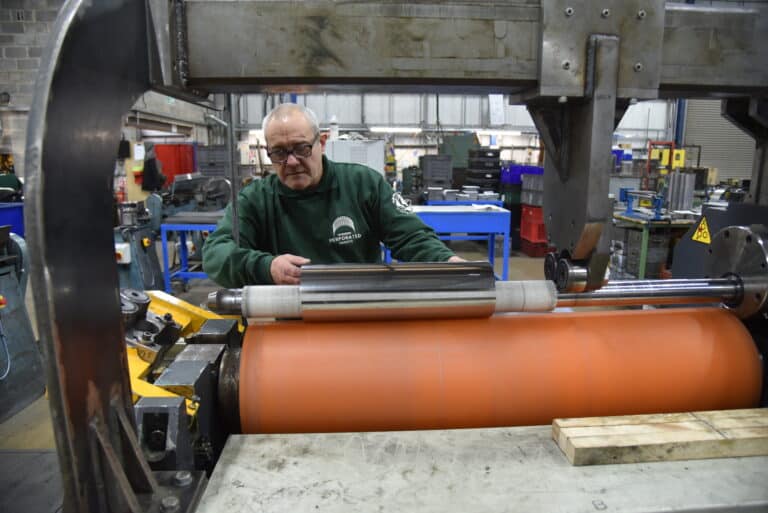

CNC roller

Our automated CNC roller offer a wide range of accurate shaping options – from round tubes or ovals to squares, rectangles or other shapes with rounded corners.
Materials
Stainless Steel, Zintec, Steel, Aluminium and others
Thickness
0.3mm to 1.5mm
Length
10mm to 770mm
Width
n/a
Diameter
50mm to 750mm
Patterns and Tooling
n/a

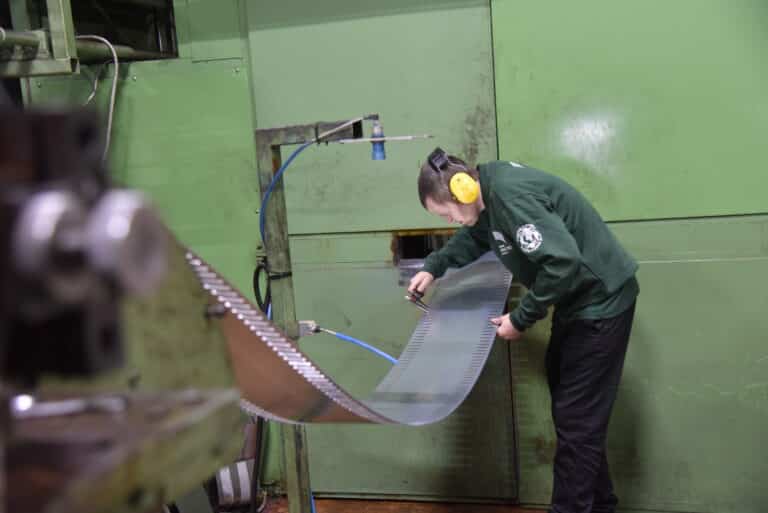

Rollers

We have a range of high speed, manual and semi-automated rollers, enabling us to roll plain, perforated, part-perforated and mesh sheet blanks to tubes in a wide range of sizes.
Materials
Stainless Steel, Zintec, Steel, Aluminium and others
Thickness
0.3mm to 1mm
Length
10mm to 1,200mm
Width
n/a
Diameter
10mm to 1,000mm
Patterns and Tooling
n/a

Finishing

Powder coating of metal products

Finishing – plating, electropolishing, powder coating

We have an extensive range of tried and trusted partners for any finishing needs.

Aqueous wash tank

Our aqueous wash tank is used for cleaning and surface preparation of metal parts. The tank contains a water-based cleaning solution to remove contaminants such as oils, grease and dirt from the stainless steel surfaces.

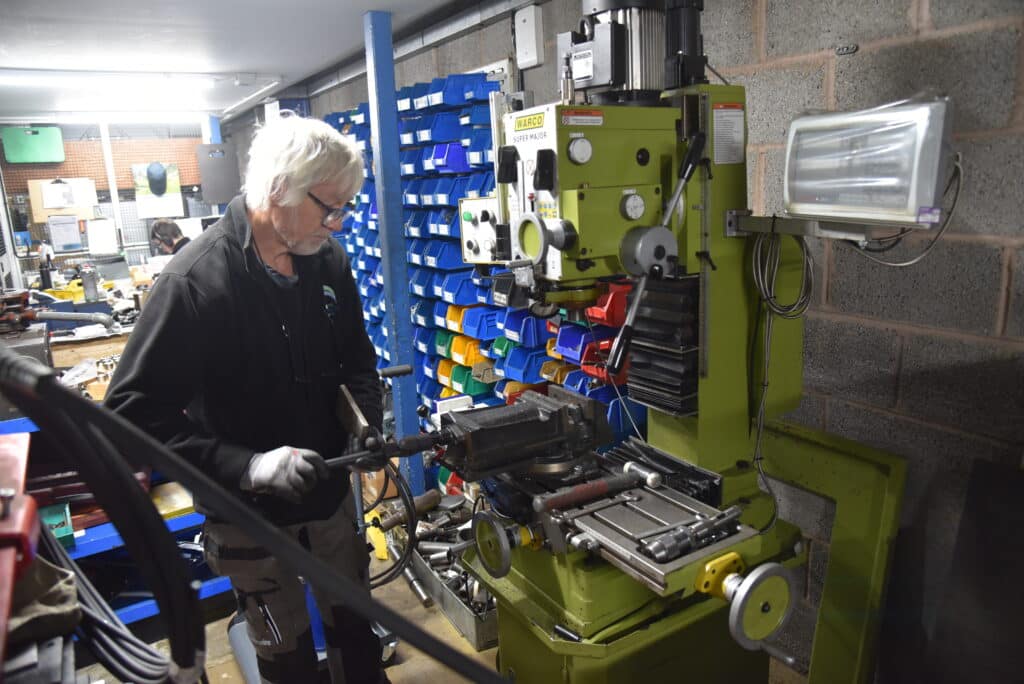

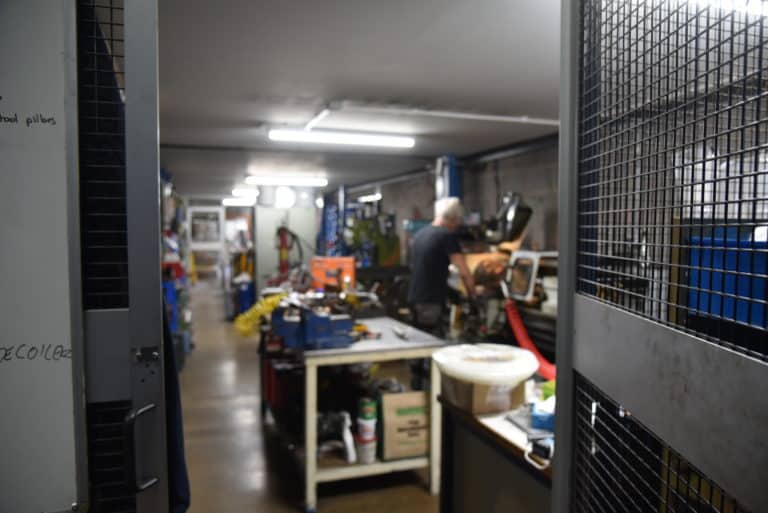

...Engineering and Prototyping Workshop

More machines to come...

If you have a full specification for your component...
our expert engineers can create a prototype for your project
If you need more help and guidance on how to achieve exactly what your project needs...
the team are on hand to support and advise to create the most cost-efficient solution.
More about our engineers

Materials

We stock a wide range of materials in a variety of sizes helping us to deliver on time and in budget. This wide-ranging stock combined with our extensive product design knowledge allow us to offer a low-cost or no-cost tooling solution for new products. We don’t charge for holding free issue products for ‘just in time’ projects.

Custom-made perforated metal

Our components can be bespoke, custom-made, automated or handcrafted. Whatever your need for perforated metal products, our precision manufacturing ensures top-quality, durable parts that meet your exact specifications.

collaboration

We're your perfect partner

If you want to know more about our bespoke prototyping service and capabilities or have a question about how our perforated products are made, please get in touch with our expert team. We'll discuss your requirements and explain how our skilled engineers work with you to provide the perfect solution.
